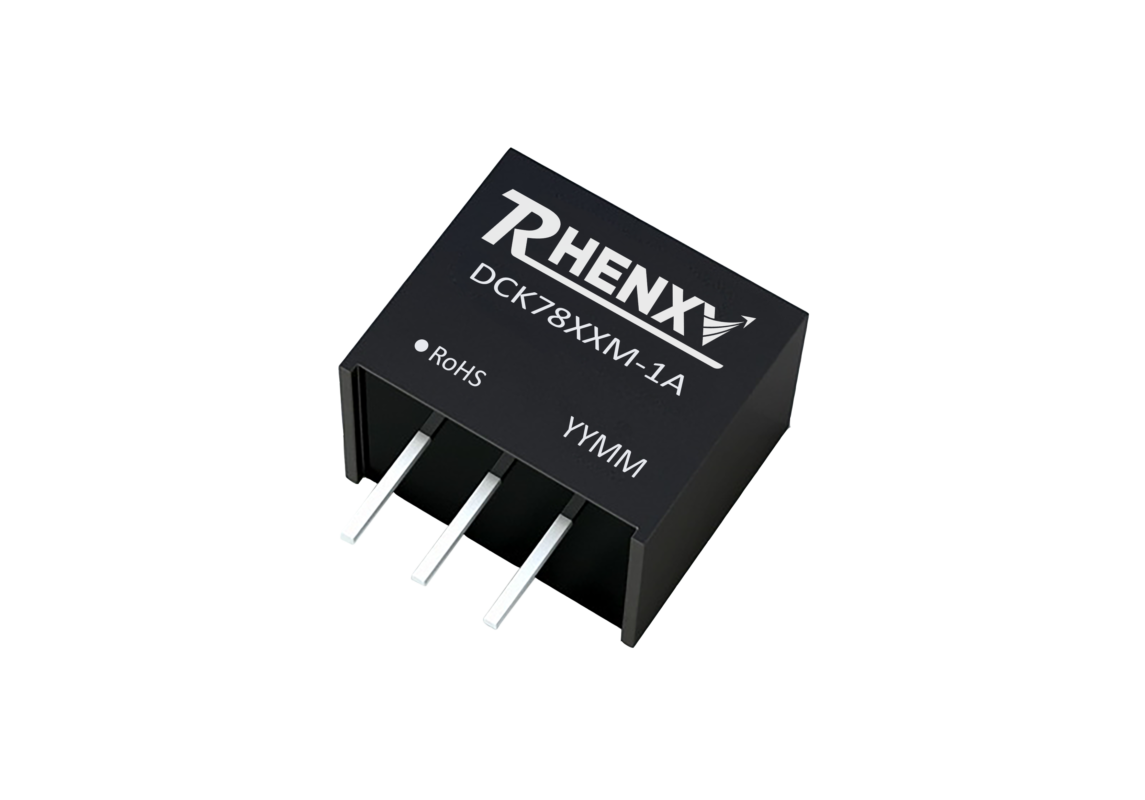

DCK7812M-1A

DCK7812M-1A

Wide voltage input, output 1000mA, non isolated / stabilized / single output / SIP3 packaging.

  • Wide operating temperature range：-40℃ to +85℃
  • Up to 95% efficiency
  • No load current as low as 0.2MA
  • Ripple as low as 30mVp-p
  • The pins are compatible with the LM78xx series and can be packaged with straight or curved pins
Datasheet
AttributeValue
Voltage IN (VDC)24, 12 VDC
Voltage Out (VDC)12,-12 VDC
LOut1000, -3 A
Efficiency92/95, 87/88%
