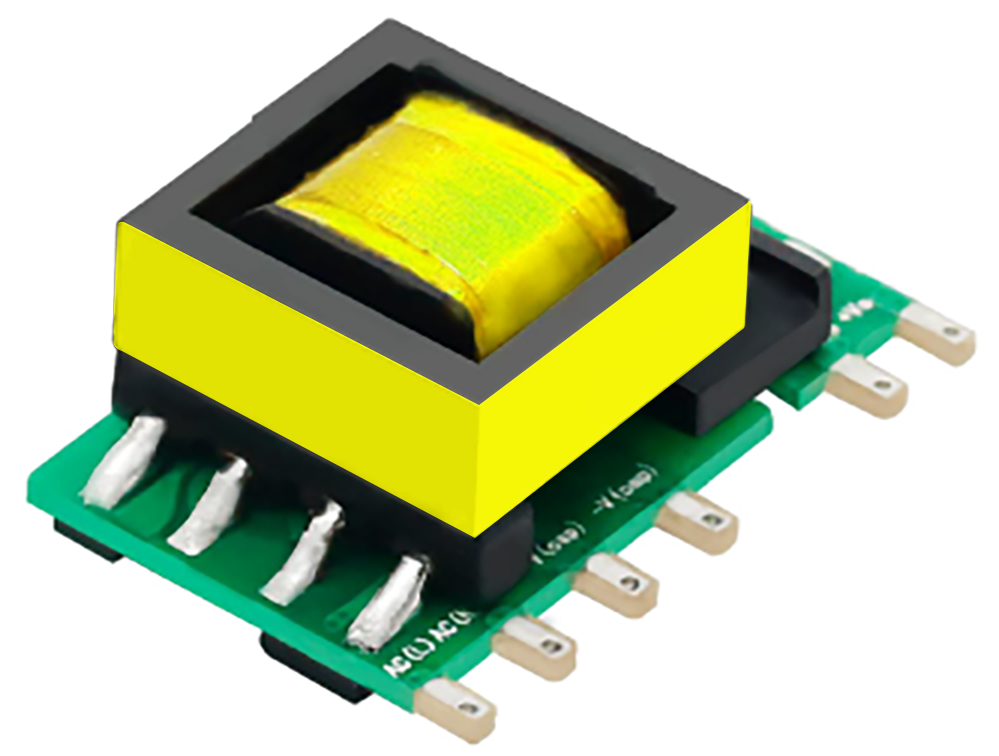

The ACS05W-xxV series is an efficient modular power supply for miniaturized bare boards, dual use of AC and DC, wide input voltage range, high reliability, low power consumption, and safe isolation. If it is necessary to apply in harsh electromagnetic compatibility environments, EMC peripheral circuits must be added.
The ACS05W-xxV series is an efficient modular power supply for miniaturized bare boards, dual use of AC and DC, wide input voltage range, high reliability, low power consumption, and safe isolation. If it is necessary to apply in harsh electromagnetic compatibility environments, EMC peripheral circuits must be added.
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| ACS05W-03V | 3.3 W | 85-305 VAC / 100-430 VDC | 3.3 VDC | Download |
| ACS05W-05V | 5 W | 85-305 VAC / 100-430 VDC | 5 VDC | Download |
| ACS05W-09V | 5 W | 85-305 VAC / 100-430 VDC | 9 VDC | Download |
| ACS05W-12V | 5 W | 85-305 VAC / 100-430 VDC | 12 VDC | Download |
| ACS05W-15V | 5 W | 85-305 VAC / 100-430 VDC | 15 VDC | Download |
| ACS05W-24V | 5 W | 85-305 VAC / 100-430 VDC | 24 VDC | Download |
