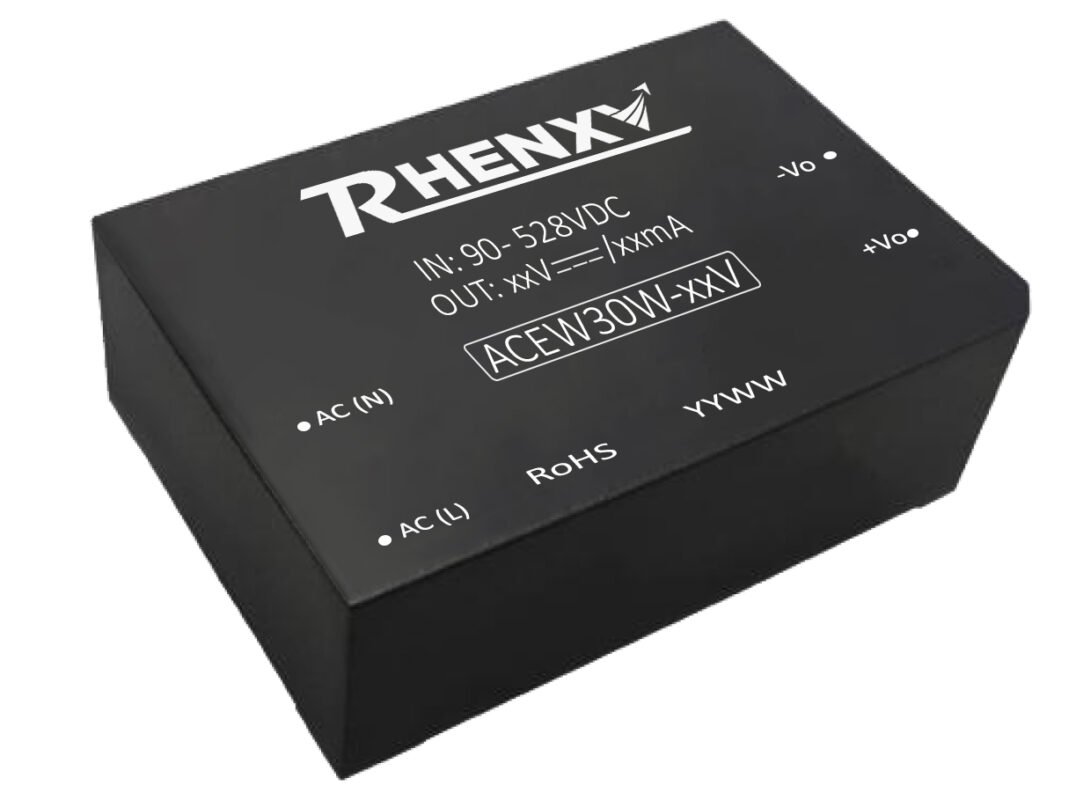

ACEW30W-xxV

ACEW30W-xxV

Compact 30W AC-DC power converter with wide AC/DC input, high efficiency, and reinforced isolation.

  • Wide 1 76 - 528VAC and 248 - 746VDC input voltage range
  • Working available with any two phases
  • Operating ambient temperature range: -40℃ to +85℃
  • High I/O isolation test voltage up to 4000VAC
  • Up to 88% efficiency
  • Output short circuit, over-current, over-voltage protection
  • EMI performance meets CISPR32 / EN55032 CLASSB
  • 3 years warranty
Datasheet

Compact 30W AC-DC power converter with wide AC/DC input, high efficiency, and reinforced isolation.

  • Wide 1 76 - 528VAC and 248 - 746VDC input voltage range
  • Working available with any two phases
  • Operating ambient temperature range: -40℃ to +85℃
  • High I/O isolation test voltage up to 4000VAC
  • Up to 88% efficiency
  • Output short circuit, over-current, over-voltage protection
  • EMI performance meets CISPR32 / EN55032 CLASSB
  • 3 years warranty

Models in Series

ModelPowerInputOutputDatasheet
ACEW30W-03V 19.8 W176-528 VAC / 248-746 VDC3.3. VDCDownload
ACEW30W-05V 30 W176 - 528 VAC / 248-746 VDC5 VDCDownload
ACEW30W-09V 30.06 W176-528 VAC / 248-746 VDC9 VDCDownload
ACEW30W-12V W VDCDownload
ACEW30W-15V W VDCDownload
ACEW30W-24V W VDCDownload
ACEW30W-48V W VDCDownload
