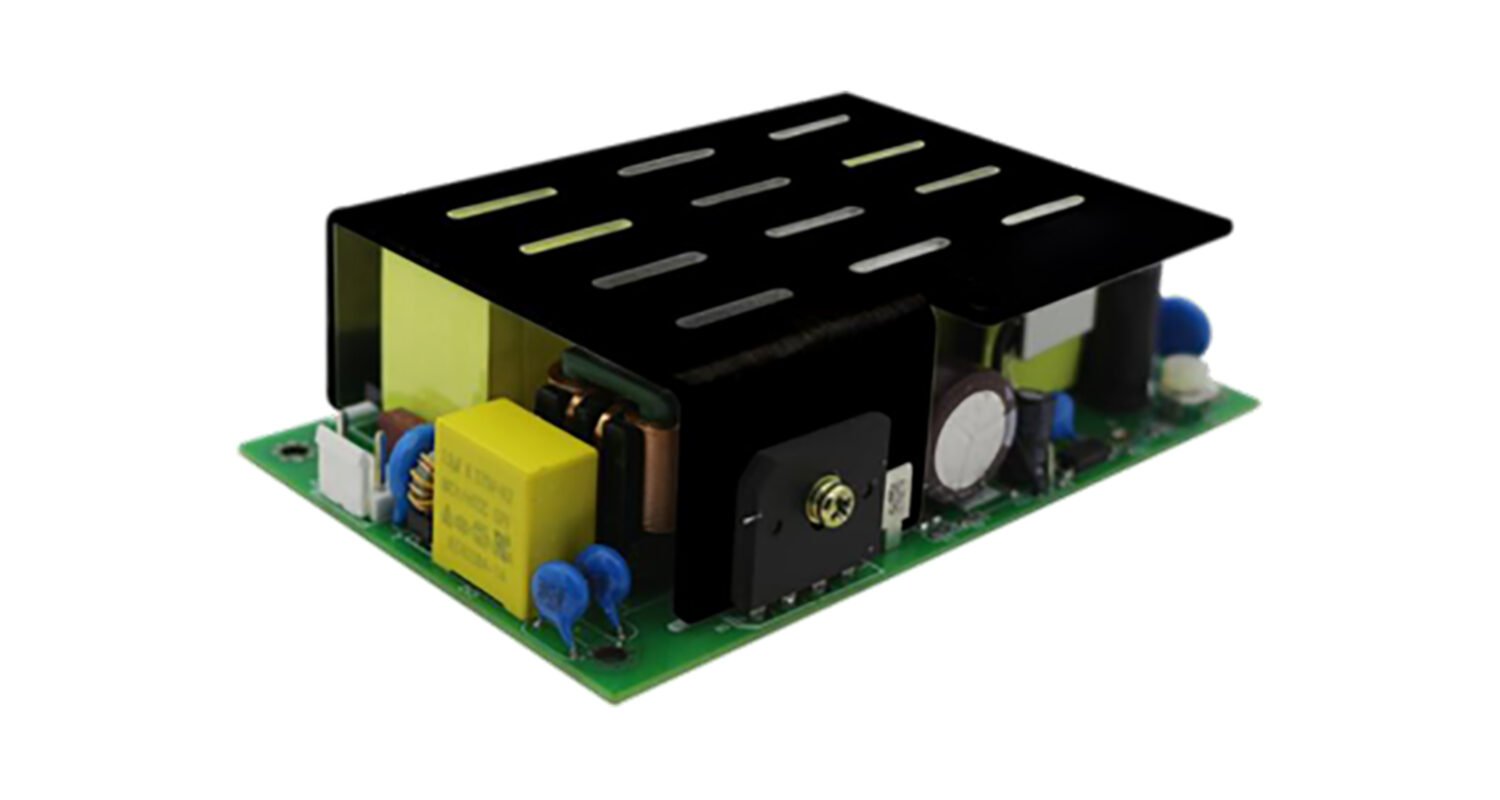

ACO350W-xxV

ACO350W-xxV series are one of RHENXV enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-inactive PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4,CISPR32/EN55032, IEC/EN62368,GB4943, IEC60950, EN60335 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

• Wide input range (90-264VAC)
• Size 127*76.2*38mm, 5"*3"
• No load power consumption<0.3W
• Protection type: short circuit/over temperature/over load/over voltage
• Air cooling 250W, 23CFM cooling 350W
• 4000V isolation voltage
• Built-in EMI filter: CLASS B
• Suitable for CLASS I or CLASS Ⅱ installations
• Built-in 12V/0.5A fan auxiliary power supply
• 100% high temperature burn-in and function test
• 3 years warranty
