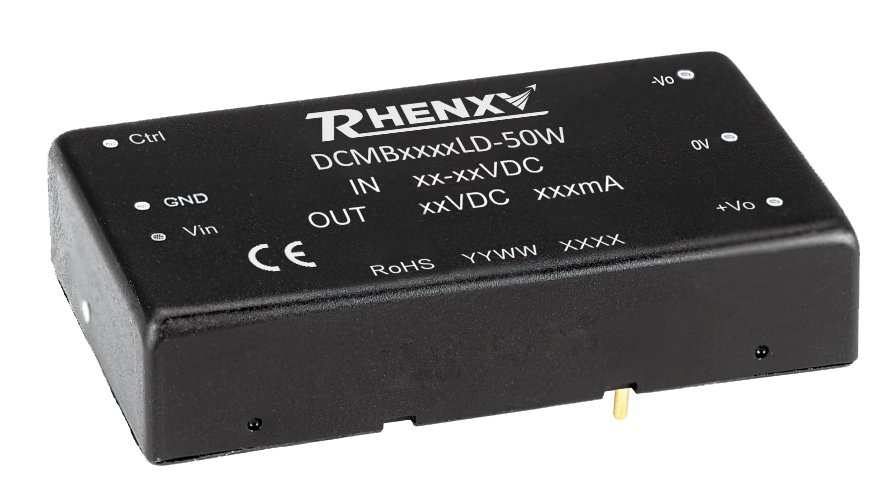

DCMB24xxLD-50W

DCMB24xxLD-50W

DC-DC module power supply, Wide voltage input, Power 50W, Isolated, Regulated, Single output, DIP packaging.

  • Wide input voltage range (2:1)
  • High efficiency up to 91%
  • Industry standard pin-out
  • No-load power consumption as low as 0.048W
  • Isolation voltage :1.5K VDC
  • Operating temperature range: -40℃ To +105℃
  • Output short-circuit, over-voltage, over-current protection
  • Metal shielded package
Datasheet

DC-DC module power supply, Wide voltage input, Power 50W, Isolated, Regulated, Single output, DIP packaging.

  • Wide input voltage range (2:1)
  • High efficiency up to 91%
  • Industry standard pin-out
  • No-load power consumption as low as 0.048W
  • Isolation voltage :1.5K VDC
  • Operating temperature range: -40℃ To +105℃
  • Output short-circuit, over-voltage, over-current protection
  • Metal shielded package

Models in Series

ModelPowerInputOutputDatasheet
DCMB2403LD-50W 50 W24 VDC3.3 VDCDownload
DCMB2405LD-50W 50 W24 VDC5 VDCDownload
DCMB2412LD-50W 50 W24 VDC12 VDCDownload
DCMB2415LD-50W 50 W24 VDC15 VDCDownload
DCMB2424LD-50W 50 W24 VDC24 VDCDownload
