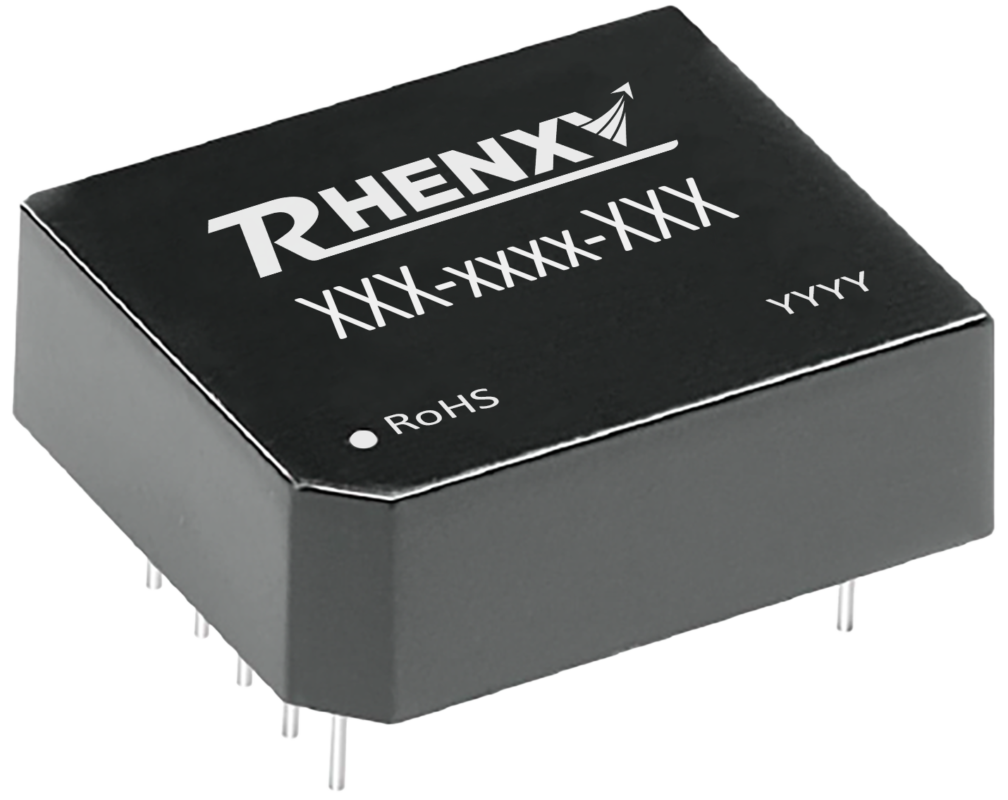

CMx01D485H-A

The CM301D485H-A / CM501D485H-A modules primarily convert logic levels to RS-485 protocol differential levels while providing signal isolation. These are RS-485 protocol transceiver modules that integrate power isolation, signal isolation, RS-485 communication, and bus protection using IC integration technology. The product includes a built-in regulated isolated power supply, achieving 2500VDC electrical isolation. The module can be easily embedded into user equipment, enabling easy connection to an RS-485 protocol network.

• Integrated high efficient isolated DC-DC converter
• High baud rate of up to 115200bps
• Two-port isolation test voltage (2.5kVDC)
• Operating ambient temperature range: -40℃ to +85℃
• The bus supports maximum 32 nodes
• Set isolation and ESD bus protection in one
• Automatic send and receive data function
