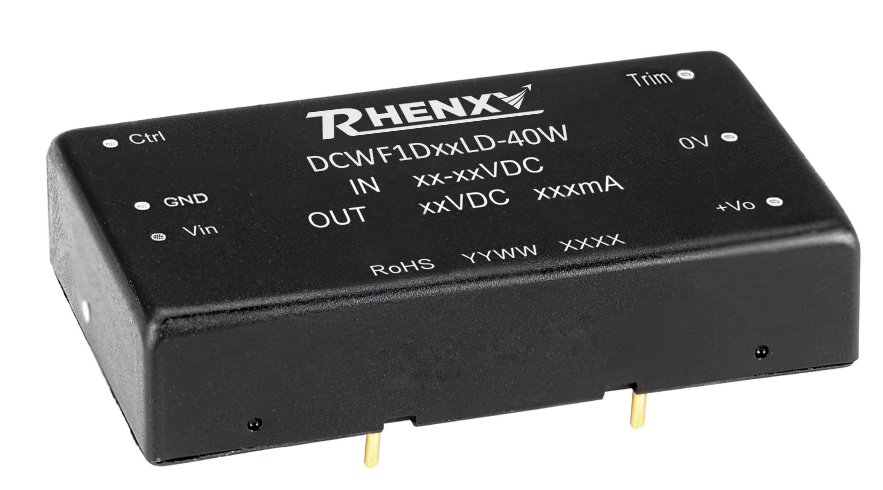

DCWF1DxxLD-40W

DCWF1DxxLD-40W series of isolated 40W DC-DC converter products have an ultra-wide input voltage of 40-160VDC and feature efficiency of up to 91%. Meet reinforced isolation, input to output isolation is tested with 3000VDC/1500VAC and the converters safely operation an ambient temperature of -40℃ to +85℃. Input under-voltage protection, output short circuit, over-current, over-voltage, over- temperature protection. It is ideally suiting electronic equipment and railway vehicle applications using 72V, 96V and 110V battery voltages.

• Wi de input voltage range (4:1)
• Input under-voltage protection, output over-voltage,
• over-current, short-circuit protection, over-temperature protection
• Industry standard pin-out
• Operating ambient temperature range -40℃ to +85℃
• Reinforced isolation, I/O isolation test voltage 3.0KVDC/1.5KVAC
