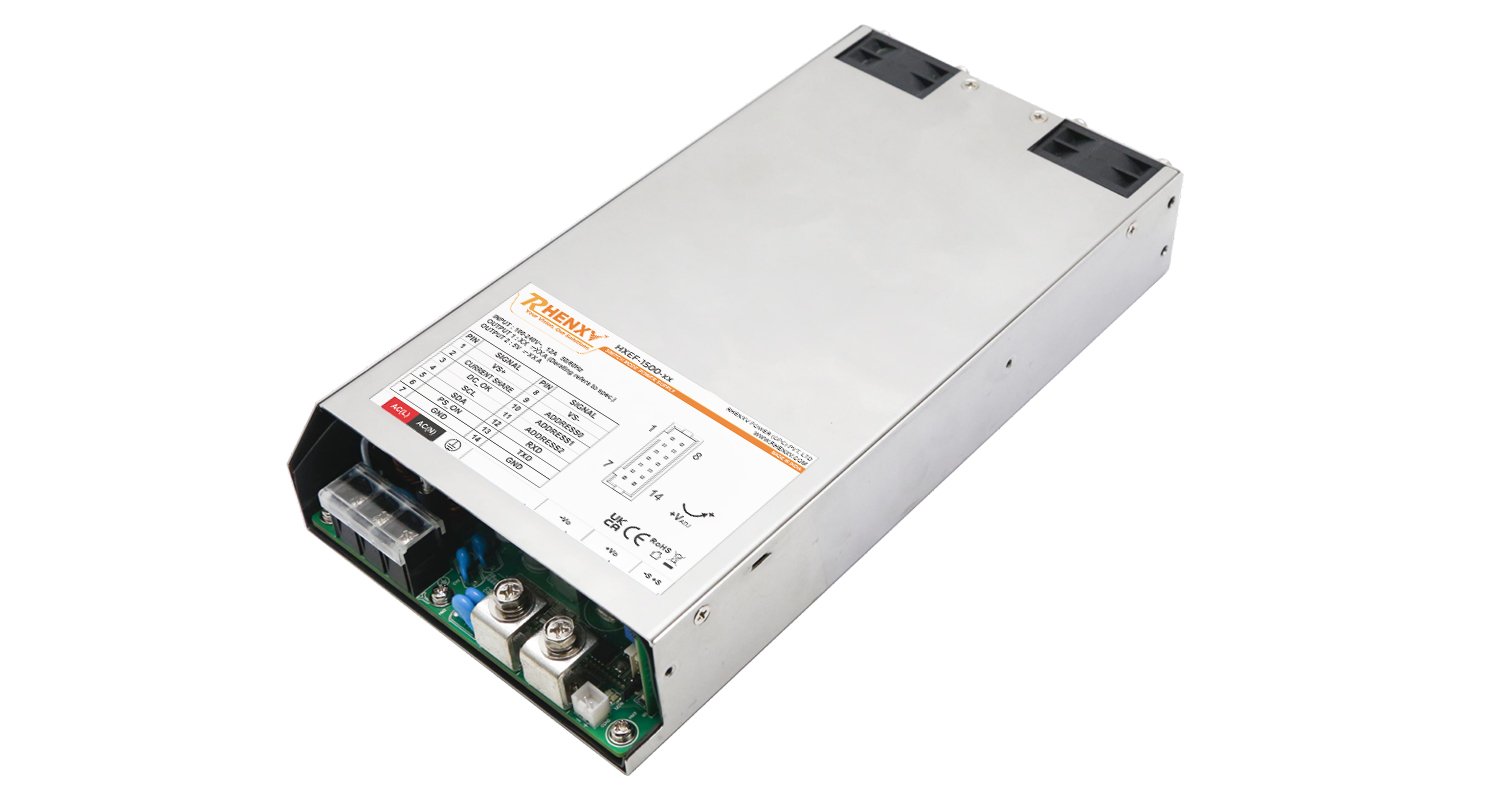

HXEF-1500-xx is an enclosed AC-DC Switching Power Supply with Universal AC Input with cost effective no load power consumption, high efficiency, high reliability and reinforced insulation also has good EMC performance which meets IEC/EN/BS EN62368, EN/ES/IEC60601, IEC60335, GB4943 standards and widely used in Industrial LED, Electricity, Security, Street Light Control, Telecom & Smart Home Applications.
HXEF-1500-xx is an enclosed AC-DC Switching Power Supply with Universal AC Input with cost effective no load power consumption, high efficiency, high reliability and reinforced insulation also has good EMC performance which meets IEC/EN/BS EN62368, EN/ES/IEC60601, IEC60335, GB4943 standards and widely used in Industrial LED, Electricity, Security, Street Light Control, Telecom & Smart Home Applications.
| Model | Power | Input | Output | Datasheet |
|---|---|---|---|---|
| HXEF-1500-12 | 1510 W | 85-264 VAC / 120-370 VDC | 12 VDC | Download |
| HXEF-1500-15 | 1510 W | 85-264 VAC / 120-370 VDC | 15 VDC | Download |
| HXEF-1500-24 | 1510 W | 85-264 VAC / 120-370 VDC | 24 VDC | Download |
| HXEF-1500-27 | 1522 W | 85-264 VAC / 120-370 VDC | 27 VDC | Download |
| HXEF-1500-36 | 1522 W | 85-264 VAC / 120-370 VDC | 36 VDC | Download |
| HXEF-1500-48 | 1546 W | 85-264 VAC / 120-370 VDC | 48 VDC | Download |
| HXEF-1500-54 | 1522 W | 85-264 VAC / 120-370 VDC | 54 VDC | Download |
