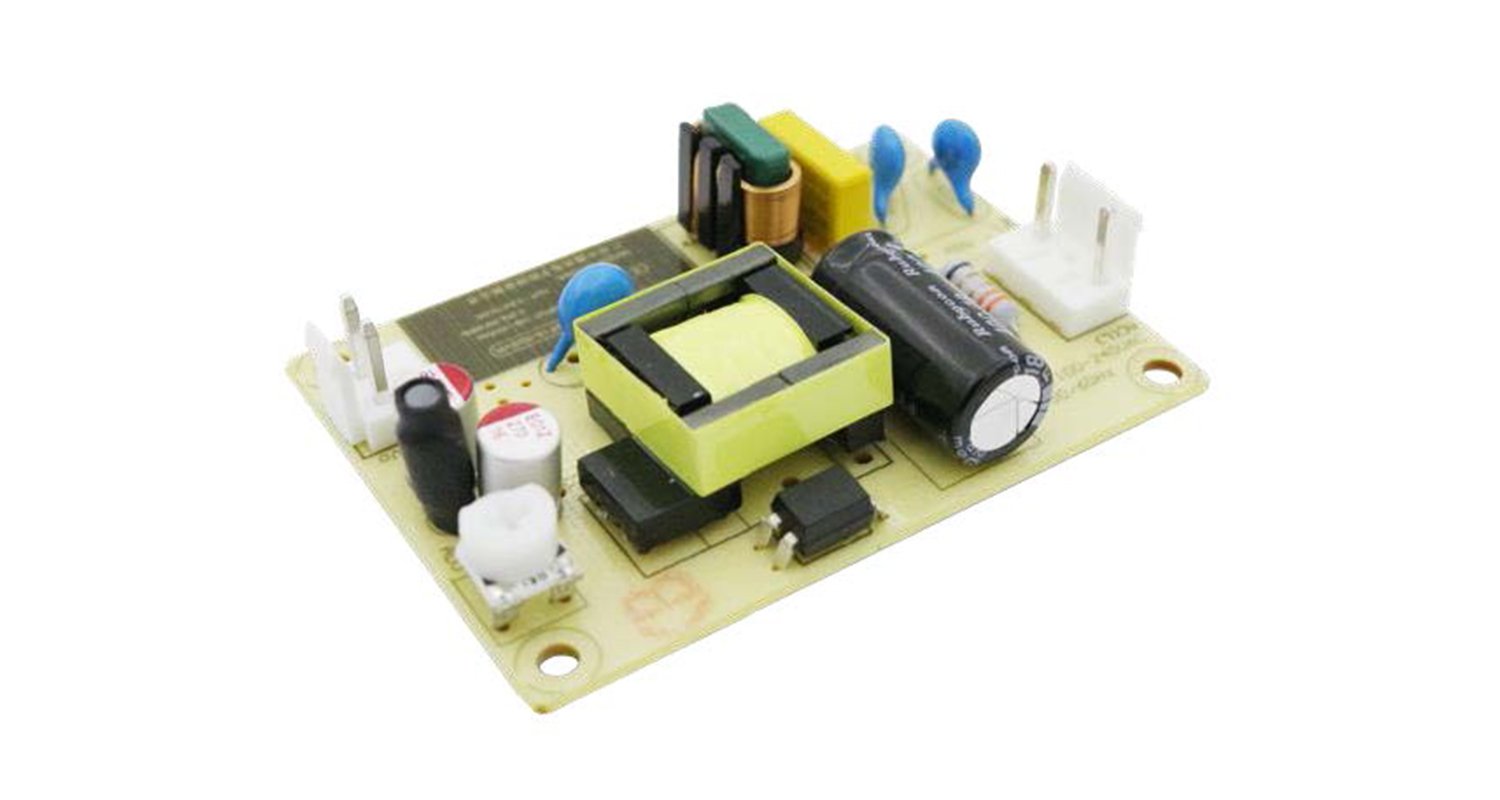

AC-DC open-frame power supply module designed to convert a wide input voltage into a stable DC outputs. It supports 85–264VAC universal input and provides DC outputs, making it suitable for industrial control systems, automation equipment, communication devices, and embedded electronics. The module offers high isolation (3000VAC), compact size, and reliable performance in harsh environments.
| Attribute | Value |
|---|---|
| Power Rating (W) | 15 W |
| Voltage IN (VAC) | 85-264 VAC |
| Voltage IN (VDC) | 100-370 VDC |
| Voltage Out (VDC) | 12 VDC |
| LOut | 1.25 A |
| Efficiency | 87% |
| Mounting Type | PCB |
| Length | 63.5 mm |
| Width | 45.7 mm |
| Depth | 18 mm |
| Maximum Temperature | +70 °C |
| Minimum Temperature | -40 °C |
