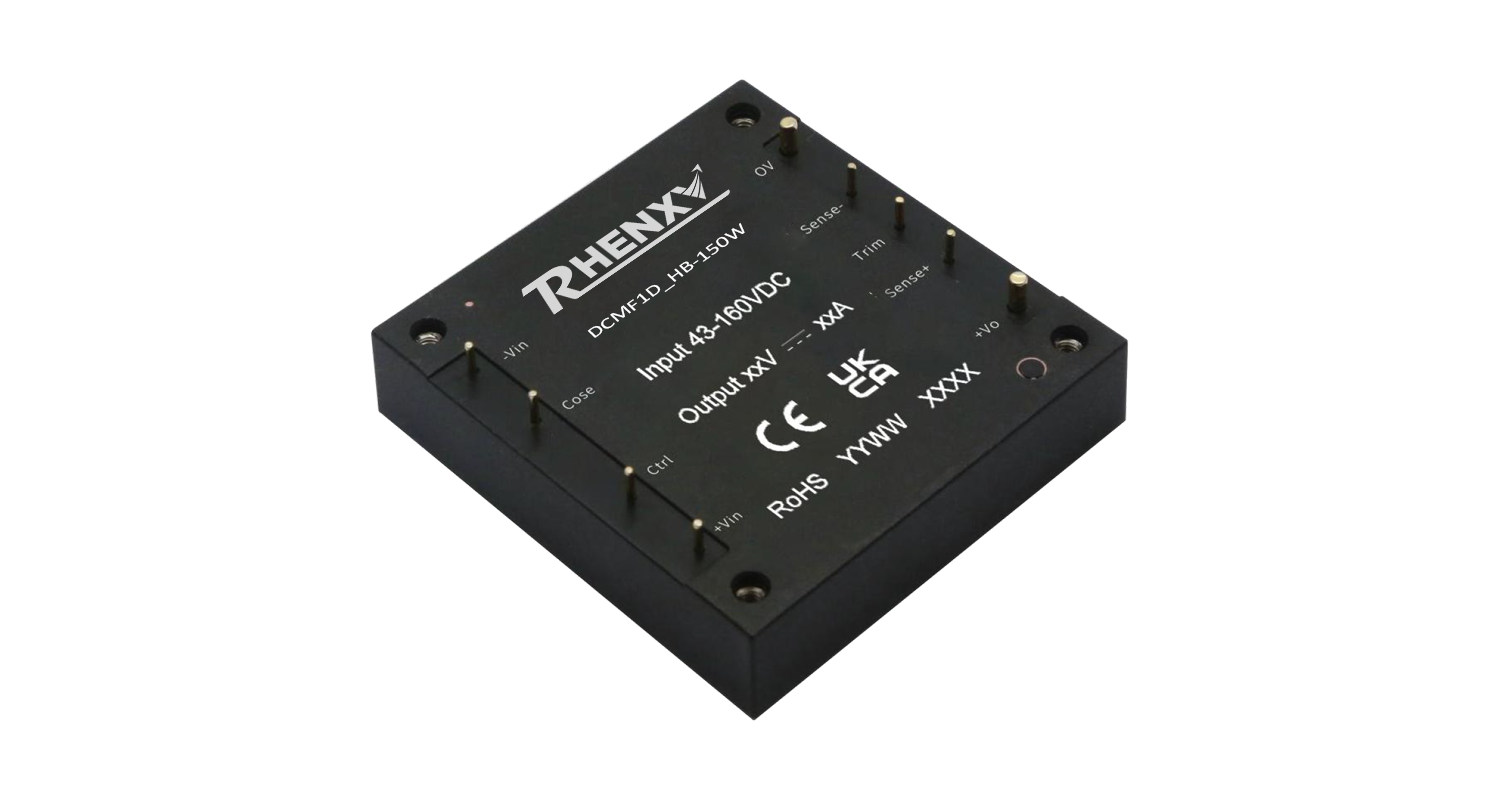

DCWF1D48HB-150W

DCWF1DxxHB-150W series is a high-performance product specifically designed for a variety of railway applications. The DC-DC converters feature up to 150W output power with no requirement for minimum load, ultra-wide input voltage from43-160VDC. The products also provide input under-voltage protection, output over-voltage, short-circuit and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation and output voltage trim adjustment. EN50155 approved and they are widely used in railway systems and associated equipment.

• Ultra-wide input voltage range: 43 -160VDC
• Operating ambient temperature range -40℃ to +105℃
• Reinforced insulation, I/O isolation test voltage 3k VAC
• High efficiency up to 90%
• Input under-voltage protection, output over-voltage, over-current, short-circuit protection, over-temperature protection
